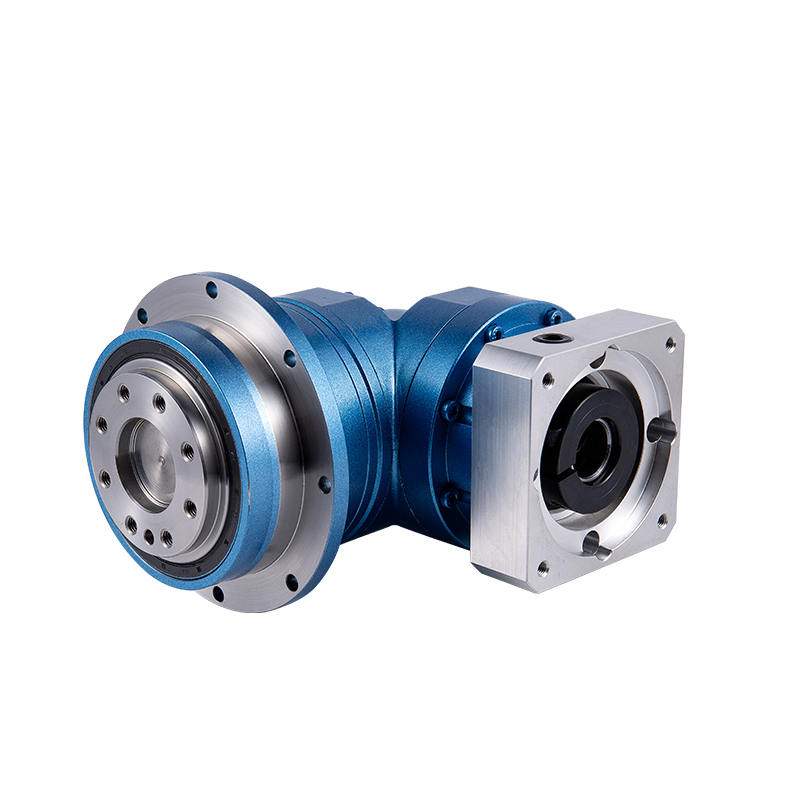

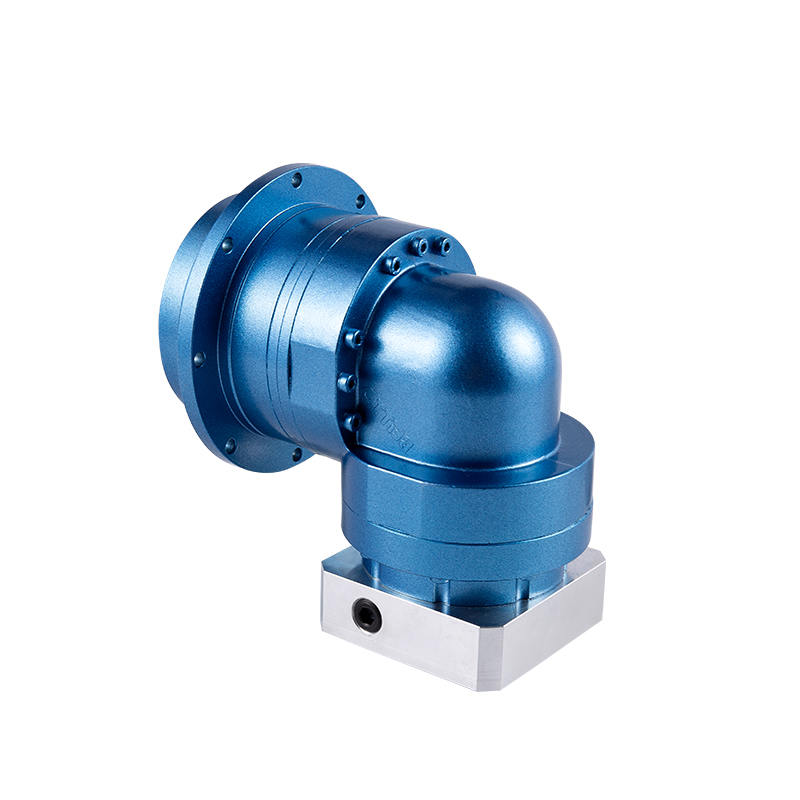

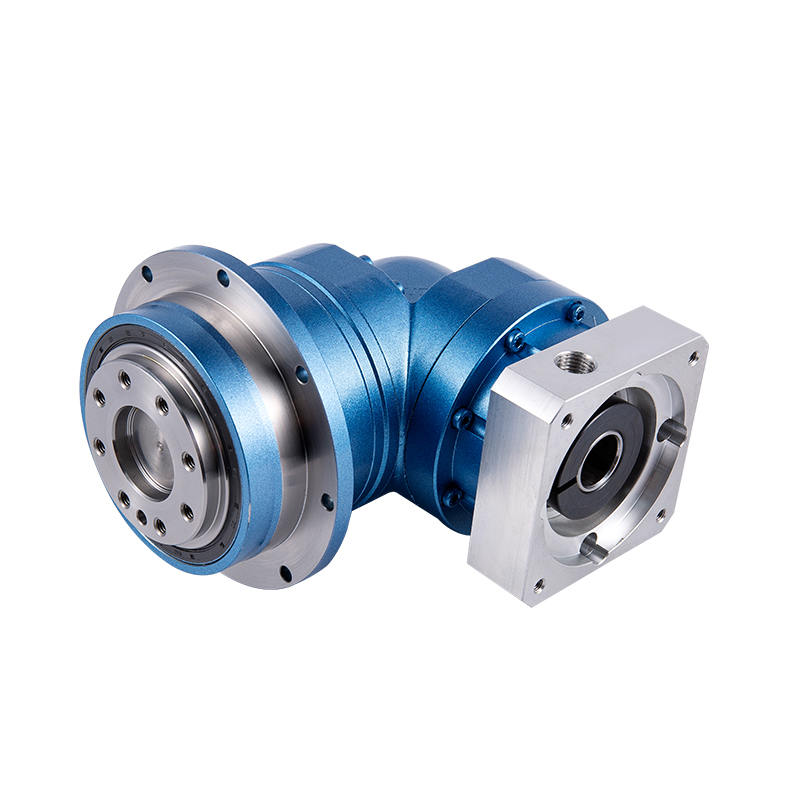

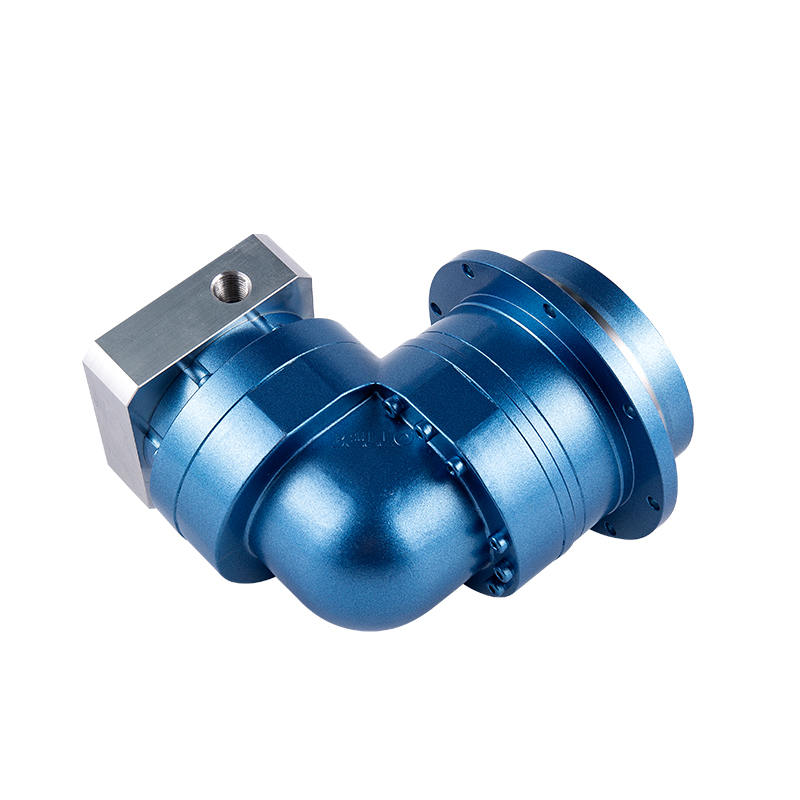

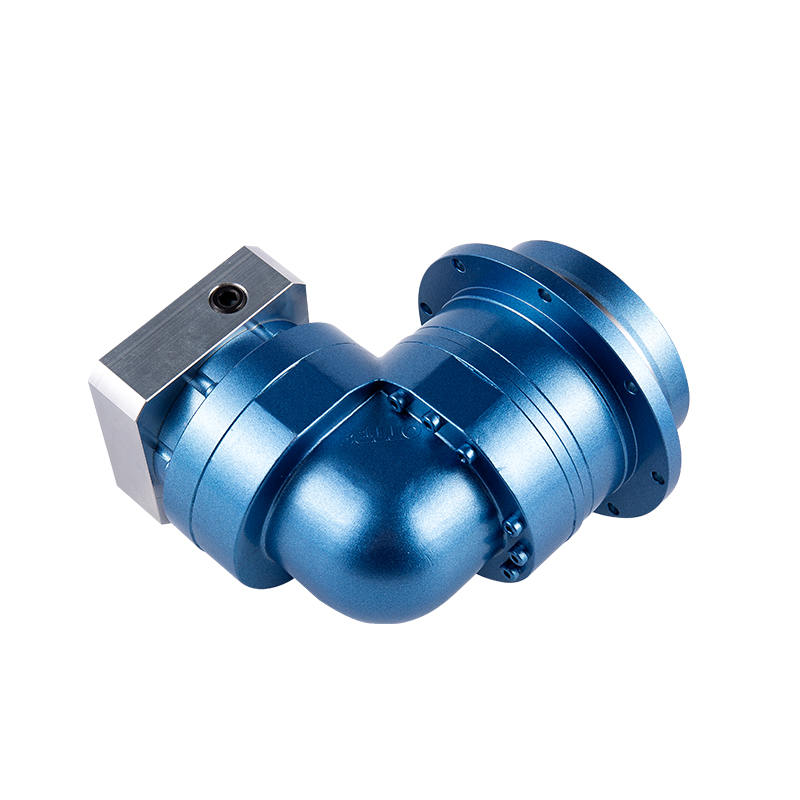

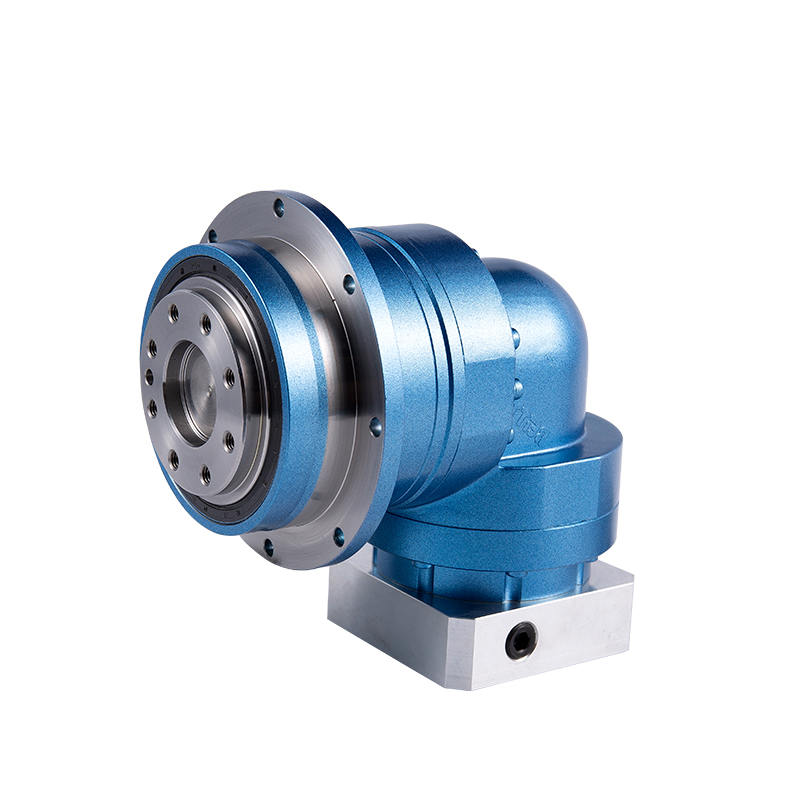

Right Angle 90 Degree Planetary Drive Speed Reducer ATR series

Features of planetary reducer
1. High precision: the standard backlash is 4 arc minutes, which is very suitable for precision control;
2. High rigidity and high torque: non-cage needle roller blanking achieves high rigidity and high torque;
3. The main output shaft adopts tapered roller bearings to increase radial and axial loads. 064 and 090 models use ball bearings;
4. Flange connection method: it can be installed on any motor in the world;
5. No oil leakage: the use of high-viscosity anti-separation grease is a solution;
6. Maintenance-free: the unit does not need to replace grease for life. It can be attached to any position.

Application field:
Industrial automation field, supporting mobile robots, SCARA robots, parallel manipulators, printing machinery, laser cutting machines, packaging machinery, pharmaceutical machinery, pipe bending machines, spring machines, non-standard automation equipment, and other industries.
The output end of the planetary reducer adopts a sturdy and durable flange design, which not only enhances the structural stability of the reducer but also makes the connection with other equipment simple and fast. The standardized interface of the flange ensures a wide range of compatibility, allowing the reducer to easily adapt to various application scenarios. Based on the flange, the planetary reducer realizes power transmission through external gears and racks. This connection method makes full use of the high transmission efficiency and accuracy of gears and racks, effectively ensuring the stability and reliability of power transmission. At the same time, the meshing design of gears and racks also reduces energy loss and noise and improves the overall performance of the reducer.
