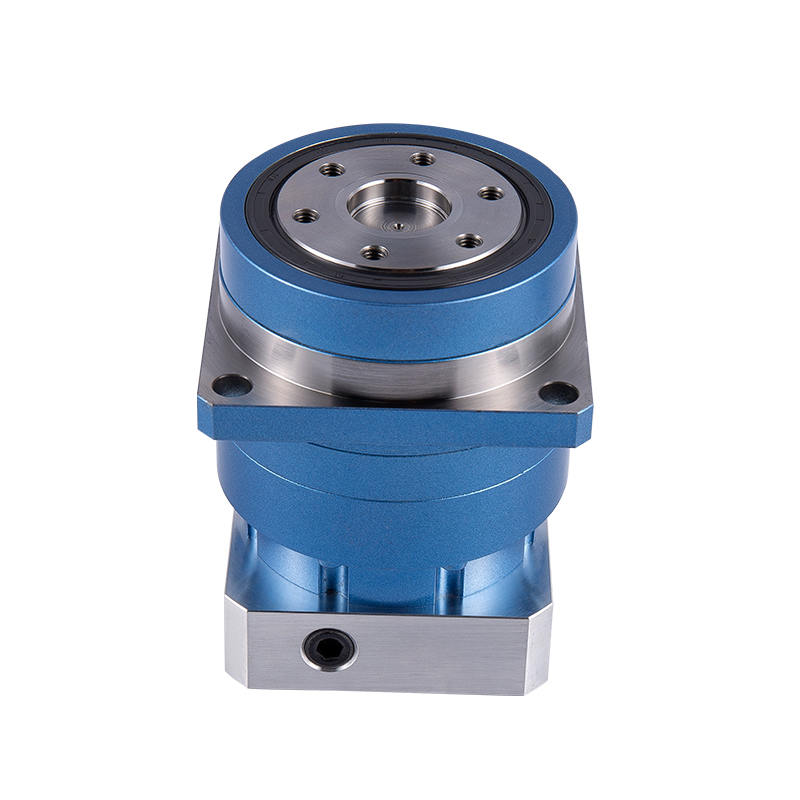

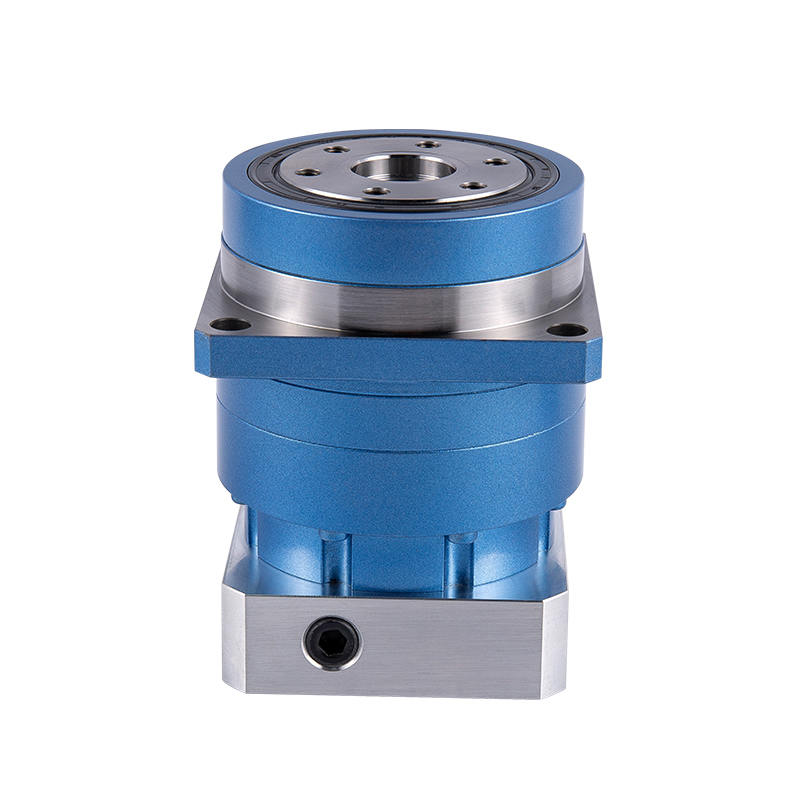

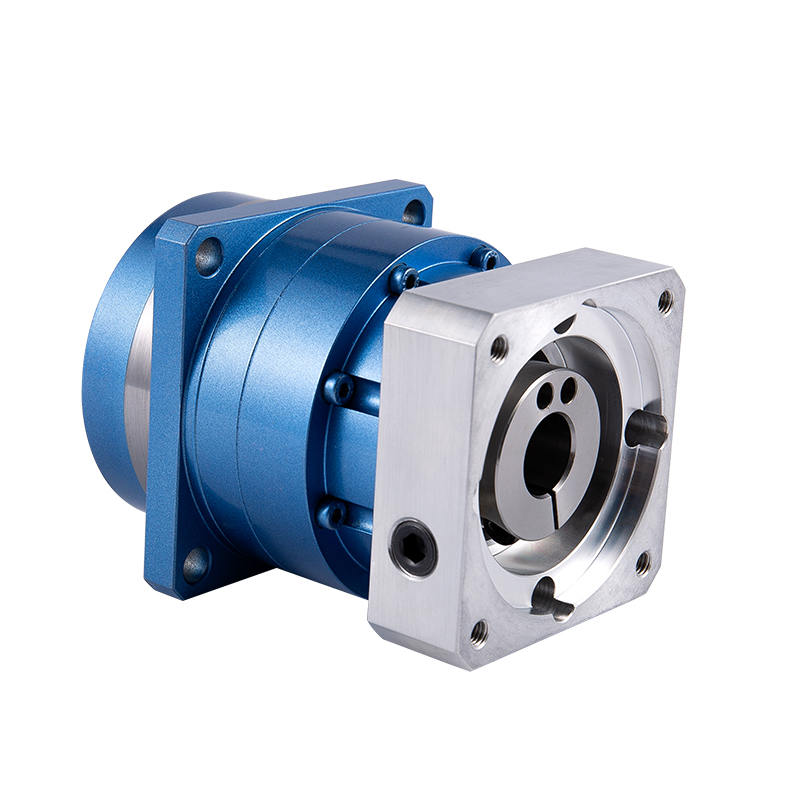

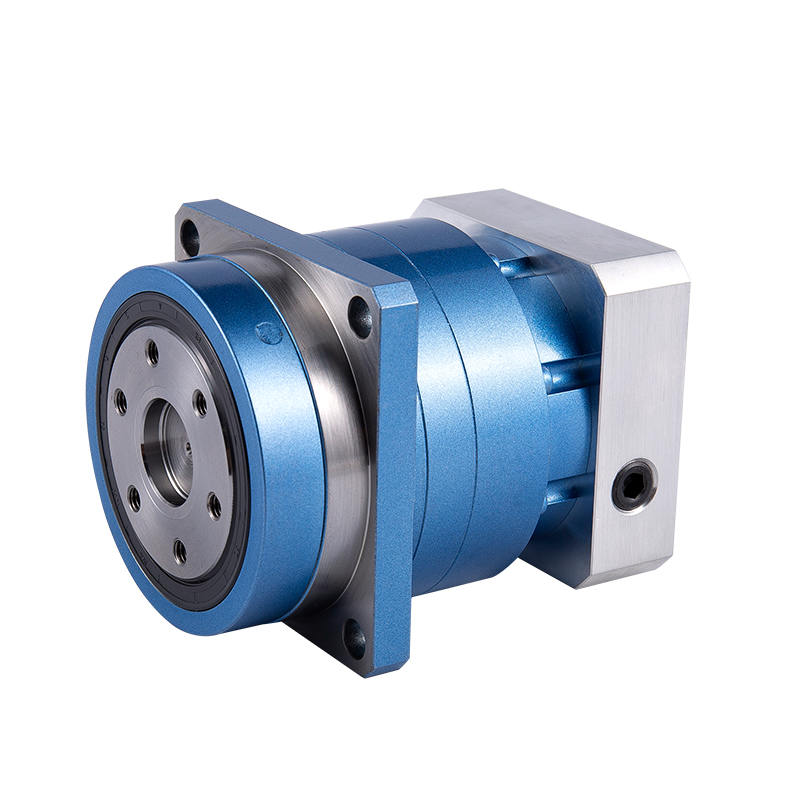

High Precision Helical Gear Planetary Gear Reducer Transmission AHG series for SCARA robot

Features of planetary reducer
1. Quiet: Use helical gears to achieve smooth and quiet operation;
2. High precision: backlash is less than 3 points, precise positioning;
3. High rigidity, high torque: Use integral cross roller bearings, which greatly improve rigidity and torque;
4. Flange connection: Can be installed on any motor in the world;
5. Cross roller bearing output, compact structure is more convenient to use;
6. Long life: No need to change lubricating oil, low wear, high durability.

Application field: SCARA robot, parallel manipulator
Planetary reducer is an industrial product that can reduce motor speed and increase output torque at the same time. Planetary reducer adopts involute planetary gear transmission and realizes efficient and stable transmission effect by rationally utilizing internal and external meshing and power diversion. After careful design and optimization, the planetary reducer runs smoothly and has low noise, which improves the comfort and service life of the equipment. The planetary reducer has high transmission efficiency, which can significantly reduce energy consumption and improve the operation efficiency of the equipment. We specially configure a flange design for the output end of the planetary reducer, which is not only convenient for users to install and connect but also improves the stability and safety of the overall structure. In addition, we use special bearing technology, through precise calculation and strict testing, to ensure that the reducer can still maintain performance and long service life when subjected to high loads, bringing users a more reliable and efficient transmission experience.
